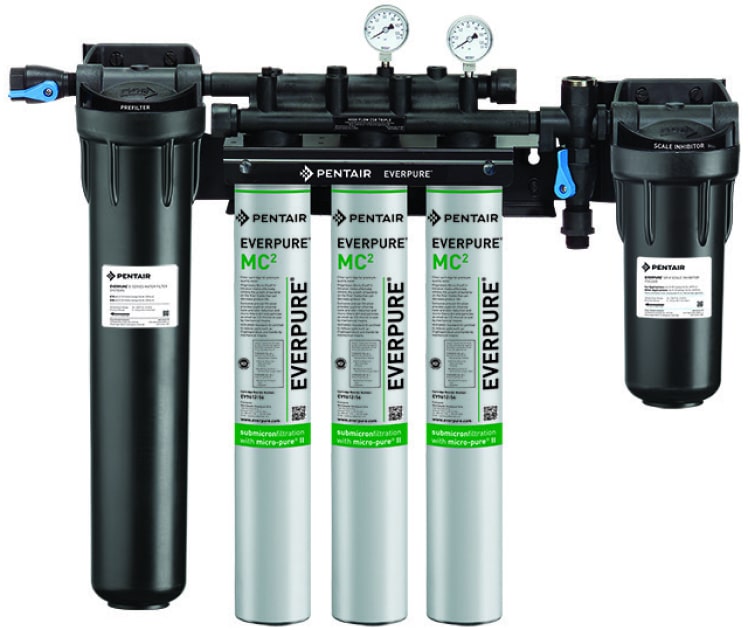

Everpure High Flow CSR Triple-MC2 System

What is HIGH FLOW CSR TRIPLE-MC2 SYSTEM?

The High Flow CSR Triple-MC2 System is engineered to meet the needs of high-demand foodservice environments, offering exceptional filtration for coffee brewers, espresso machines, hot chocolate dispensers, fountains, and ice machines.

Utilizing Pentair Everpure’s MicroPure II media, it excels in bacterial inhibition and applies exclusive precoat filtration to effectively reduce chlorine taste and odor, all while filtering particles down to 0.2 micron for premium water quality.

Download PDF

Benefits of Choosing HIGH FLOW CSR TRIPLE-MC2 SYSTEM Compared to Other Brands

Explore why the High Flow CSR Triple-MC2 sets itself apart, providing exceptional capacity, innovative technology, and consistent performance tailored for busy commercial settings.

Innovative Filtration Technology

The Micro-Pure II media enhances bacterial control, extending filter life and ensuring high-quality outcomes, particularly suited for high-turnover beverages.

Comprehensive Equipment Coverage

Its design supports a vast array of beverage equipment needs, allowing seamless operations and reduced complexity in maintenance.

Enhanced Taste and Odor Management

Pre-coat technology offers superior removal of chlorine and contaminants, enhancing the taste profile across various beverages.

Optimal Performance and Durability

Rated for 27,000 gallons with a 5 gpm flow capability, this system reliably meets the continuous demands of high-volume venues, assuring operational efficiency.

SPECIFICATIONS

Service Flow Rate

Maximum 5 gpm (18.9 Lpm)

Connections

Inlet Connection: 3/4″
Outlet Connection: 3/4″

Rated Capacity

27,000 gallons (102,206 L)

Shipping Weight

39 lbs (17.6 kgs)

Pressure Requirements

10 – 125 psi (0.7 – 8.6 bar), non-shock

Operating Weight

49 lbs (22.2 kgs)

Temperature Limits

35 – 100°F (2 – 38°C)

Electrical Connection

None required

Overall Dimensions

25.59″ L x 30″ W x 6.74″ D
(64.9 cm x 76.2 cm x 17.1 cm)
